安装尺寸

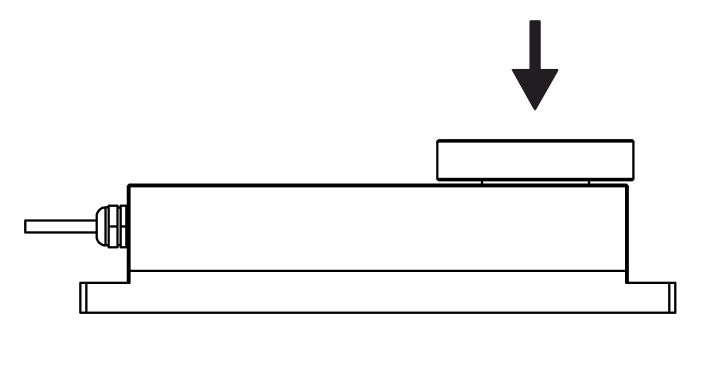

受力方式
配线图
技术参数
| 参数 | Specifications | 技术指标/Technique |
| 额定容量 | Capacity | 5,10,20,50KG |
| 输出灵敏度 | Rated output | 2.0±20%mV/V |
| 零点输出 | Zero balance | ±0.05mV/V |
| 非线性 | Non-linearity | ≤0.01%F.S. |
| 滞后 | Hysteresis | ±0.01%F.S. |
| 重复性 | Repeatability | ±0.01%F.S. |
| 蠕变(30min) | Creep(30min) | ±0.01%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | 0.01%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | 0.01%F.S./10℃ |
| 输入电阻 | Input impedance | 350±10Ω |
| 输出电阻 | Output impedance | 350±5Ω |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Excitation Voltage | 5~15V |
| 最大激励电压 | Maximum excitation Voltage | 20V |
| 温度补偿范围 | Compensated temp range | -10~60℃ |
| 工作温度范围 | Operation temp range | -20~80℃ |
| 安全超载 | Safe overload | 150%F.S. |
| 极限超载 | Ultimate overload | 300%F.S. |
| 电缆线尺寸 | Cable size | Ф4x3000mm |
| 材料 | Material | aluminum alloy(铝合金) |
| 防护等级 | IP Class | IP65 |
