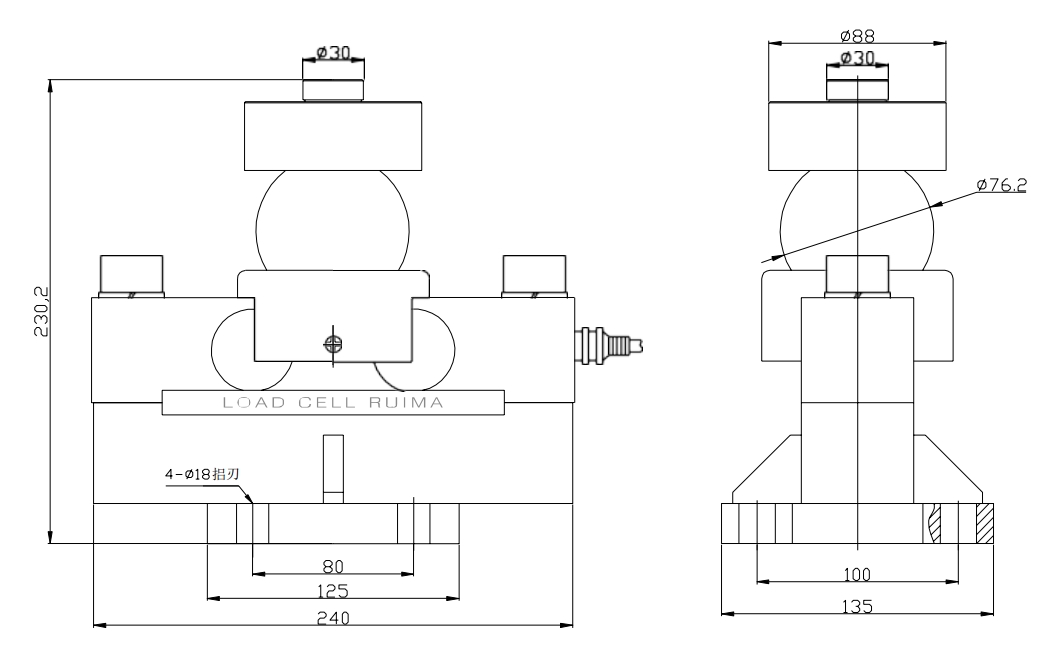

安装尺寸

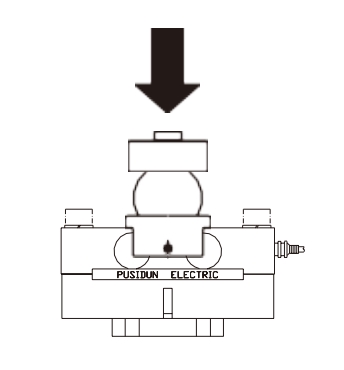

受力方式
配线图
技术参数
| 参数 | Specifications | 技术指标/Technique |
| 量程范围 | Capacity | 10~40T |
| 精度等级 | Accuracy Class | C2,C3 |
| 额定输出 | Rated output | 2.0±0.002%mV/V |
| 零点输出 | Zero balance | ±1%F.S. |
| 非线性 | Non-linearity | ±0.02%F.S. |
| 滞后 | Hysteresis | ±0.02%F.S. |
| 重复性 | Repeatability | ±0.02%F.S. |
| 蠕变(30min) | Creep(30min) | ±0.02%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | ±0.02%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | ±0.02%F.S./10℃ |
| 输入电阻 | Input impedance | 780±10Ω |
| 输出电阻 | Output impedance | 701±2Ω |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Excitation Voltage | 10VDC |
| 最大激励电压 | Maximum excitation Voltage | 15VDC |
| 温度补偿范围 | Compensated temp range | -30~70℃ |
| 工作温度范围 | Operation temp range | -20~60℃ |
| 安全超载 | Safe overload | 150%F.S. |
| 极限超载 | Ultimate overload | 200%F.S. |
| 电缆线尺寸 | Cable size | 12M 16M |
| 防护等级 | Protection class | IP67 |
