资料下载

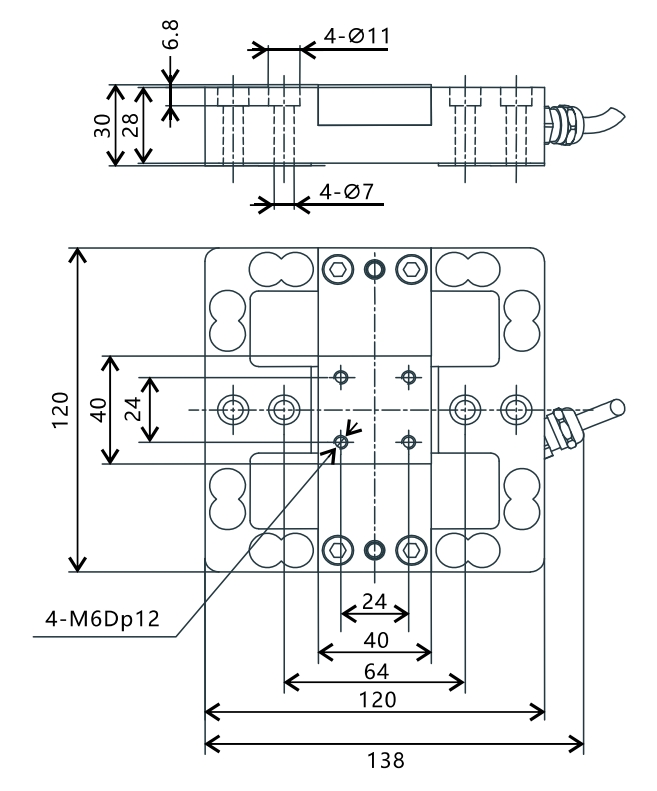

安装尺寸

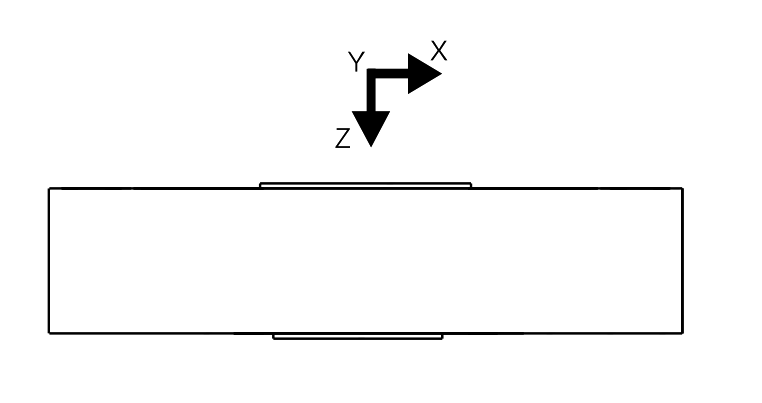

受力方式

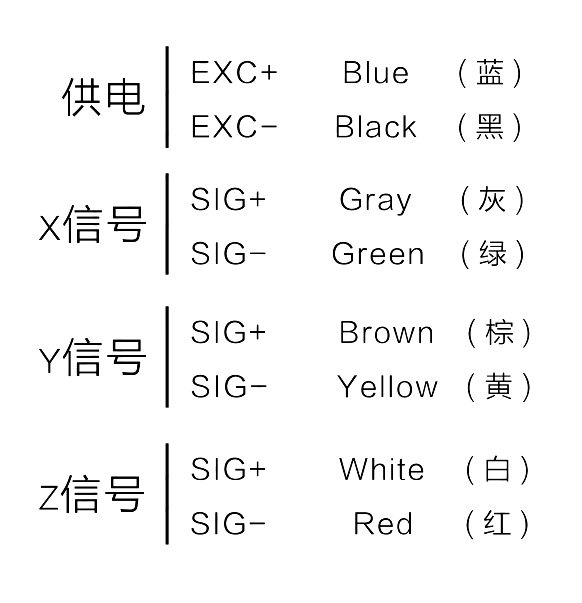

配线图
技术参数
| 参数 | Specifications | 技术指标/Technique |
| 额定容量 | Capacity(N) | X:50/100/200/500/1000/2000/5000 Y:50/100/200/500/1000/2000/5000 Z:50/100/200/500/1000/2000/5000 |
| 输出灵敏度 | Rated output | ≈1.0mV/V |
| 零点输出 | Zero balance | ±2%F.S. |
| 非线性 | Non-linearity | ±0.1%F.S. |
| 滞后 | Hysteresis | ±0.1%F.S. |
| 重复性 | Repeatability | ±0.1%F.S. |
| 互扰误差 | Interference error | ±0.3%F.S. |
| 温度灵敏度漂移 | Temp.effect on output | ±0.1%F.S./10℃ |
| 零点温度漂移 | Temp.effect on zero | ±0.1%F.S./10℃ |
| 输入电阻 | Input impedance | 785±20Ω |
| 输出电阻 | Output impedance | 700±10Ω |
| 绝缘电阻 | Insulation | ≥5000MΩ/100VDC |
| 激励电压 | Excitation Voltage | 5~12V |
| 最大激励电压 | Maximum excitation Voltage | 15V |
| 温度补偿范围 | Compensated temp range | -10~40℃ |
| 工作温度范围 | Operation temp range | -20~75℃ |
| 安全超载 | Safe overload | 150%F.S. |
| 极限超载 | Ultimate overload | 300%F.S. |
| 电缆线尺寸 | Cable size | Ф5x3000mm |
